PICOCARE

Beyond Nano,
experience real PICO

Picosecond Nd:YAG Laser

PRINCIPLE

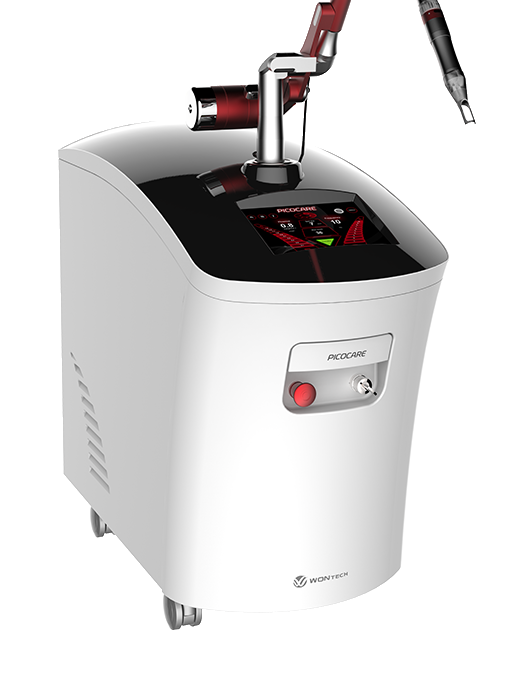

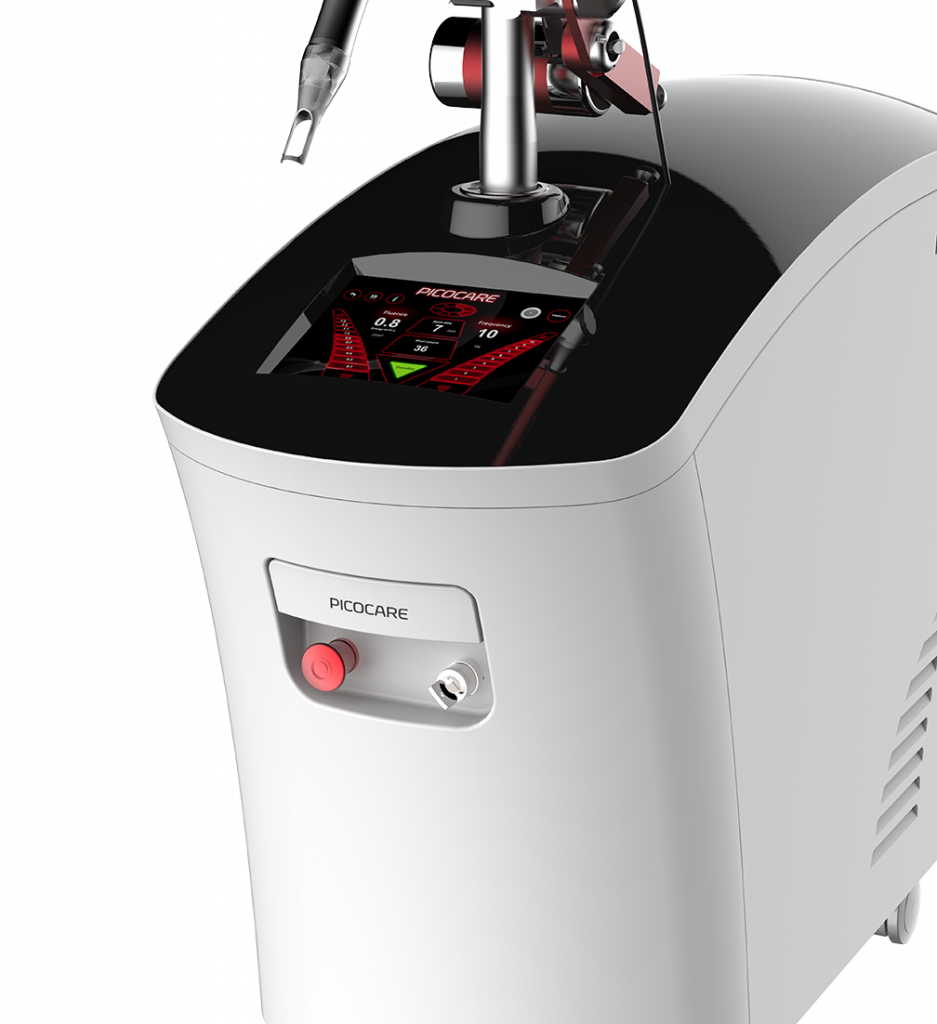

PICOCARE is the Nd:YAG picosecond laser system to treat tattoo colors & pigmented lesions.
In terms of speed & comfort, its performance is Superior to any other device in the market.

PROCEDURE

BEAM PROFILE

UI

FEATURES

Picosecond Nd:YAG Laser 1064nm&532nm + 595nm, 660nm
Beyond Nano, Experience Real PICO
PICOCARE breaks all colors of tattoos and pigments into tiny particles by higher peak power of shorter pulseduration.
Best solution for tattoo removal
PICOCARE450 has more photomechanical effect with less thermal effect on the skin,
bringing better results with almost no side effects in tattoo removal and pigmentation treatment.
HEXA MLA handpiece, replacing subcision
HEXA MLA(Micro Lens Array) handpiece is the fractional system with high energy density
in the center of each dots.
PICOCARE450 with HEXA MLA handpiece can replace aggressive scar treatments
such as subcision : scar tissues in the deep dermis can be destroyed without severe pain
and the depressed scar is noticeably lifted as a good result.

INDICATION

Epidermal Lesions
Freckles, Melasma, Café au Lait
Age Spots(Semile Lentigos), Solar Lentigo(Sun spots)
Seborrheic Keratosis
Dermal Lesions
Various Colors Tattoo
Nevus of Ota
ABNOM
Vecker’s Nevus
HEXA MLA
Acne Scar(Box, Ice pick, Rolling, Hypertrophic
Skin Rejuvenation

NANO vs PICO



HEXA MLA



HEXA MLA uses the principle of Laser Induced Optical Breakdown (LIOB)
Cavitation occurs in the target area (epidermis or dermis) and stimulates collagen and elastic fibers.
As cavitation is formed with preserving the stratum corneum layer intact, the recovery period is shorten and the effects of scar treatment and
skin rejuvenation are very satisfactory in a single session.



HEXA MLA uses the principle of Laser Induced Optical Breakdown (LIOB)
Cavitation occurs in the target area (epidermis or dermis) and stimulates collagen and elastic fibers.
As cavitation is formed with preserving the stratum corneum layer intact,
the recovery period is shorten and the effects of scar treatment and skin rejuvenation are very satisfactory in a single session.



Specifications

System Type Nd:YAG
Wavelength 1064nm, 532nm, 595nm, 660nm
Output 600mJ(1064nm), 300mJ(532nm)
Pulse Duration 450ps
Peak Power 1.33GW(1064nm), 0.8GW(532nm)
Spot Size Zoom H/P : 2 to 10mm
HEXA MLA H/P : 3 to 5mm, 6 to 10mm
DYE H/P : 3mm
Collimation H/P : 7mm
Repetition Rate Single, Up to 10Hz
Handpiece Zoom H/P
HEXA MLA H/P
DYE H/P
Collimation H/P
Dimensions 450(W) x 939(D) x 908(H)mm
Weight 90kg
